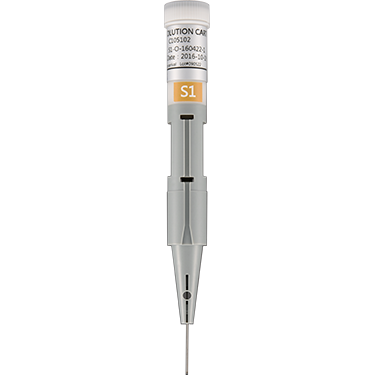

Kartuschen für die Bio-Fragment-Analyzer Qsep1 und Qsep100

Kapillar Gelelektrophorese

  • Gebrauchsfertige Kartuschen für die Verwendung mit den Bio-Fragment Analyzern Qsep1/Qsep1-Plus oder Qsep100
  • Patentierte Technologie (Link)
  • Spezifische Kartuschen für zahlreiche Applikationen
  • Mehrfach einsetzbar für 100-300 Proben: Das Kapillargel regeneriert automatisch zwischen den Läufen
Preis auf Anfrage


×
Art. Nr. C105...
Kartuschen für die Bio-Fragment-Analyzer Qsep1 und Qsep100

Details

Für die Verwendung mit den Biofragment-Analyzern Qsep1 und Qsep100 stehen verschiedene Kartuschen für zahlreiche Anwendungen zur Auswahl
  • Für die Analyse von DNA oder RNA oder Proteine
  • Standard Cartridges, Fast-Cartdriges, Quantification
  • High-Resolution Cartridges und High-Sensitivity Cartridges

Finden Sie die beste Kartusche für Ihre Analysen mit Hilfe der folgenden Übersicht oder Tabs (Applikationen und Spezifikationen):

Qsep Cartridges - An Overview

Applikationen



Standard Cartridge (S2) High Resolution Cartridge (S1) Kilobase Cartridge (S3) Fast Cartridge (F3)
Nur für Qsep100 geeignet
 High Sensitivity Cartridge (N1) RNA Cartridge (R1) Protein Cartridge (P2) High sensitivity Kilobase Cartridge (N3) High sensitivity RNA Cartridge (NR1)
PCR product screening x x x
Restriction Fragment Length Polymorphism (RFLP) x x x
Plasmid purification & Vector cloning analysis x x
Next Generation Sequencing (NGS) QC x
Genomic DNA analysis x x
Cell free DNA detection x
RNA Analysis x x
Low concentration sample x x x
CRISPR QC & Analysis x x x x
Large size analysis (>50kb) x x
Replace SDS-PAGE x
IgG Purity Test x

Spezifikationen

DNA-Kartuschen
Cartridge name /
Specfication		 Standard Cartridge Kit(S2) High Resolution Cartridge Kit (S1) Fast Cartridge Kit (F3)
Only suitable for Qsep100		 High Sensitivity Cartridge Kit (N1) Kilo Base Cartridge Kit (S3) High Sensitivity Kilo Base Cartridge Kit (N3) Standard Quantitative Cartridge Kit (S2) High Resolution Quantitative Cartridge Kit (S1) High Sensitivity Quantitative Cartridge Kit (N1)
 1-channel | 1 cartridge
 C105101
(1 pcs)		 C105102
(1 pcs)		 C105103
(1 pcs)		 C105105
(1 pc)		 C105106
(1 pcs)		 C105153
(1 pc)
1-channel | 2 cartridges C105201
(2 pcs)		 C105202
(2 pcs)		 C105203
(2 pcs)		 C105205
(2 pcs)		 C105206
(2 pcs)		 C105253
(2 pcs)		 C105201-Q
(2 pcs)		 C105202-Q (2 pcs) C105205-Q (2 pcs)
1-channel | 8 cartridges C105801
(8 pcs)		 C105802
(8 pcs)		 C105803
(8 pcs)		 C105806
(8 pcs)
4-channels | 1 cartridge C405101
(1 pc)		 C405102
(1 pc)		 C405103
(1 pc)		 C405105
(1 pc)		 C405106
(1 pc)		 C405101-Q
(1 pc)		 C405102-Q (1 pc)
Sample size range 10-5000 bp 10-5000 bp 10-5000 bp 10-5000 bp 10-50000 bp 10-50000 bp 10-1500 bp 10-1500 bp 10-5000 bp
L.O.D. 0.1 ng/uL* 0.1 ng/uL* 0.1 ng/uL* 5 pg/uL* 0.1 ng/uL* 5 pg/uL* 0.1 ng/uL* 0.1 ng/uL* 5 pg/uL*
Best Resolution 4-10 bp 1-4 bp >50 bp >10 bp 10-50 bp 10-50 bp 4-10 bp 1-4 bp >10 bp
Analysis time (per sample) 2-3 mins 3-5 mins 1-2 mins 2-3 mins 5-21 mins 9-25 mins 2-3 mins 3-5 mins 5-21 mins
Sample number (per cartridge) 200 runs 200 runs 300 runs 100 runs 200 runs 100 runs 200 runs 200 runs 200 runs
Sample consumption (per run) <0.1 µL <0.1 µL <0.1 µL <0.1 µL <0.1 µL <0.1 µL <0.1 µL <0.1 µL <0.1 µL
Recommended sample volume 0.1 mL tube:
10 µL		 0.1 mL tube:
10 µL		 0.1 mL tube:
10 µL		 0.1 mL tube:
10 µL		 0.1 mL tube:
10 µL		 0.1 mL tube:
10 µL		 0.1 mL tube:
10 µL		 0.1 mL tube:
10 µL		 0.1 mL tube:
10 µL
0.2 mL tube:
20 µL		 0.2 mL tube:
20 µL		 0.2 mL tube:
20 µL		 0.2 mL tube:
20 µL		 0.2 mL tube:
20 µL		 0.2 mL tube:
20 µL		 0.2 mL tube:
20 µL		 0.2 mL tube:
20 µL		 0.2 mL tube:
20 µL
Micro vial:
2 µL (C104250)		 Micro vial:
2 µL (C104250)		 Micro vial:
2 µL (C104250)		 Micro vial:
2 µL (C104250)		 Micro vial:
2 µL (C104250)		 Micro vial:
2 µL (C104250)
Shelf life 6 months 6 months 4 months 3 months 6 months 3 months 6 months 6 months 3 months

* Determined by the DNA ladder 15-622 (DNA size marker C109200)
L.O.D.: 2pg/µL (if diluted in water)



RNA- und Protein-Kartuschen
Cartridge name /
Specification		 RNA Cartridge (R1) High Sensitivity RNA Cartridge (NR1) Protein Cartridge (SDS) (P2)
1-channel | 1 cartridge C105110 (1 pc) C105111 (1 pc) C105121 (1 pc)
1-channel | 2 cartridges C105210 (2 pcs) C105211 (2 pcs) C105221 (2 pcs)
1-channel | 8 cartridges C105810 (8 pcs)
4-channels | 1 cartridge C405110 (1 pc) C405121 (1 pc)
Sample size range N/A N/A 14-150 kDa
L.O.D. 5 ng/µL 1 ng/µL 0.5 ng/µL (BSA)
Best Resolution N/A N/A N/A
Analysis time (per sample) 5-10 mins 5-10 mins 6 mins (BSA)
10 mins (IgG)
Sample number (per cartridge) 100 runs 100 runs 100 runs
Sample consumption (per run) <0.1 µL <0.1 µL <0.1 µL
Recommended sample volume 0.1 mL tube: 10 uL 0.1 mL tube: 10 uL 0.1 mL tube: 10 uL
0.2 mL tube: 20 uL 0.2 mL tube: 20 uL 0.2 mL tube: 20 uL
Micro vial: 2 µL Micro vial: 2 µL
(C104250) (C104250)
Shelf life 3 months 3 months 3 months

L.O.D.: 2pg/µL (if diluted in water)

Downloads

Patent BiOptic European Patent Specification

F3_Fast Cartridge
High Resolution Quantitative Cartridge QuickStart
N1_High Sensitivity Cartridge
N3_High Sensitivity Kilobase Cartridge
NR1_High Sensitivity RNA Cartridge
P2_Protein Cartridge
Quantitative Cartridge QuickStart
R1_RNA Cartridge Sample Preparation
R1_RNA Cartridge
S1_High Resolution Cartridge
S3_Kilobase Cartridge
S2_Standard Cartridge
