FastGene NanoView Photometer

Microvolume Photometer

Request a demo or a quote

  • Introductory price
  • Best device performance: Microvolume drop and cuvette reader
  • Specialist: quantification of nucleic acids (dsDNA, ssDNA, RNA), proteins (BSA, IgG) and OD600
  • Cost-saving: stand-alone device with integrated control unit
  • Convenient utility: simple and intuitive menu
  • Highest reliability: 10 pre-configurated measuring modes ensure secure utilization
Price on request


×
Cat. No. FG-NP02 1 piece

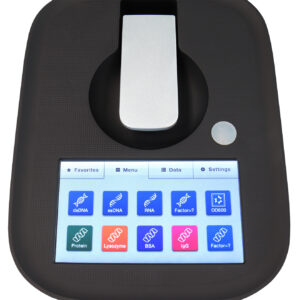

FastGene NanoView - frontview

Details

The compact specialist microvolume photometer

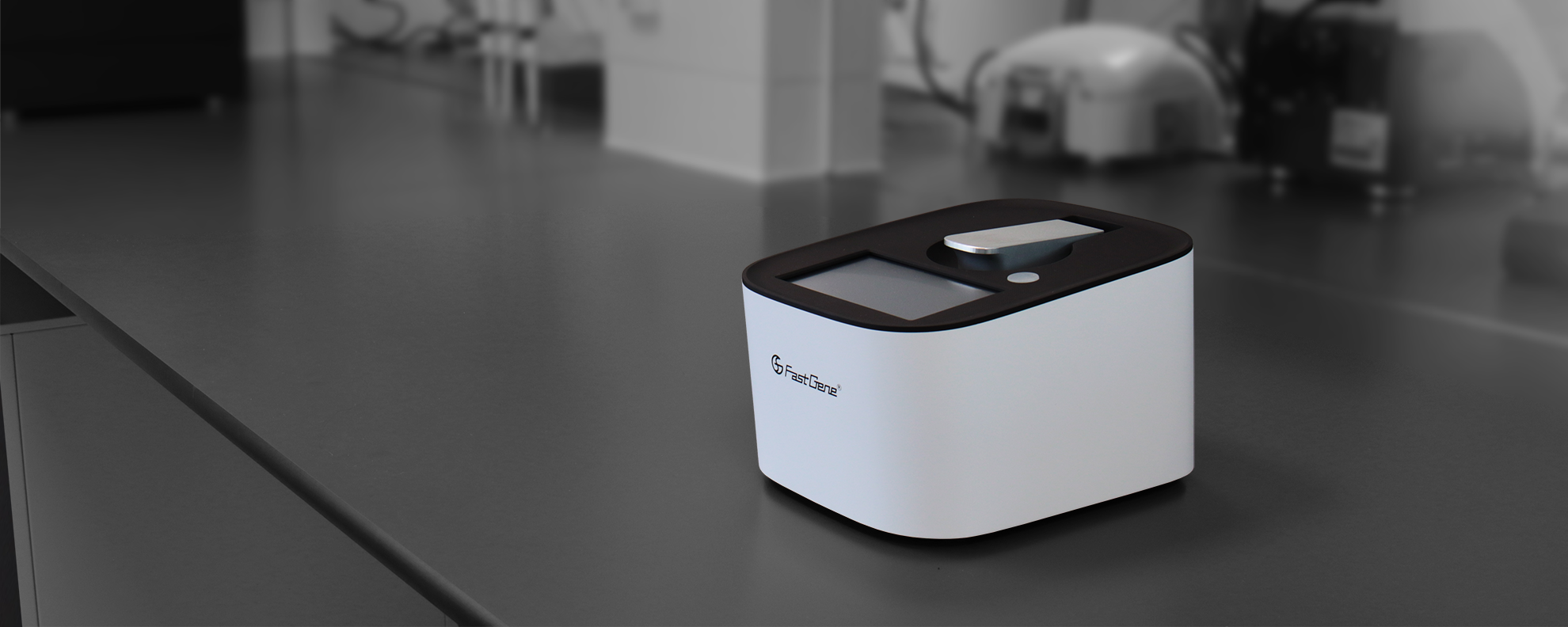

NanoView Photometer in the lab

The FastGene® NanoView Photometer is a small micro sample analyzer with a very easy and convenient user interface.
Nucleic acids and proteins are quantified with highest reliablility via absorption measurement at 260 nm, 280 nm and 600 nm.


One compact device
 for the quantification of the main biomolecules (e.g., dsDNA, ssDNA, RNA and proteins) due to absorption measurement at 260 nm, 280 nm and 600 nm (cuvette)
Sample-saving
 due to a microvolume (2 µL sample volume)
Convenient utility
 due to very easy and intuitive menu
High reliability



 in results due to 1) the patented slope algorithm (light path optimization technique), 2) due to the integrated baseline correction with an additional LED at 360 nm and 3) 10 pre-configurated measurement modes minimizing application errors
Clean workplace
 due to glove-compatible LCD touch-screen
Cost-saving
 due to integrated control unit
Flexible usage
 e.g., in training laboratories, due to a small footprint  (14,5 cm x 19 cm) and light weight (1.4 kg)
Comfortable and safe data management
 due to alternative saving at the device and download to a USB flash drive or smartphone
Reduced application time
 due to the series-measurement function and no need for a lamp warming-up
Technology

The FastGene® NanoView Photometer uses a special light path optimization technique (slope algorithm) to enable measurement of a wide range of absorbance.

Measurement and configuration

The stated factor of each pre-configurated measurement mode is set as the default value. Therefore, no adjustment is needed.

  • Nucleic acids: dsDNA | ssDNA | RNA | Factor=?*
  • Proteins: OD600 | Protein | Lysozyme | BSA | IgG | Factor=?*

*Maximal flexibility and specificity is achieved by the input mode (Factor=?) which enables the user to set a custom-specific factor value which is different from the default value.

Video

Introduction video FastGene® NanoSpec and FastGene® NanoView Photometers

NanoSpec and NanoView Photometer

Usability (free demo)

Measurement modes and configuration

The menu of the FastGene® NanoView is very simple and intuitive. 10 pre-configurated measuring modes ensure secure utilization and highest reliability.

Maximal flexibility and specificity is achieved by the input mode (Factor=?) which enables the user to set a custom-specific factor value which is different from the default value.

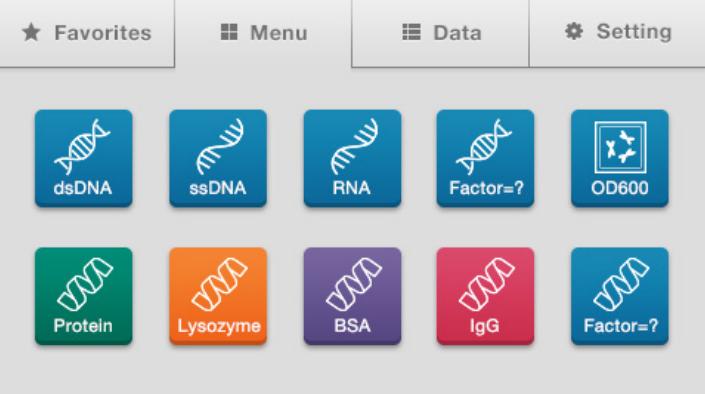

Main menu:

Free demonstration

We would be happy to demonstrate the ease of use of the FastGene® NanoView photometer.
Just ask for a free product demonstration (online or on site).


Specifications
Specification
FastGene® NanoView Photometer
General specifications
Photometric system Microvolume photometer
Sample number 1
Minimal sample volume 2 µL
Footprint (W x D) 145 mm x 190 mm
Weight 1.4 kg
Optical specifications
Detector Silicon photodiode
Light source LEDs
Measurement wavelength 260 nm, 280 nm / 600 nm (cuvette)
Baseline correction wavelength 360 nm
Measurement time < 10 seconds
Pathlength 0.03 – 0.5 mm (auto ranging)
Spectral resolution ≤ 8.0 nm
Absorbance precision 0.002 Abs (0.5 mm pathlength)
Absorbance range 0 – 40 Abs
Detection limit About 2 ng/μL (dsDNA)
Maximum concentration 2,000 ng/µL (dsDNA), 60 mg/mL (BSA), 28.8 mg/mL (IgG)
Photometric range (10 mm equivalent) Cuvette: 0 – 2 A, accuracy: 3% (at 1A/mm at 280 nm)
Cuvette center hight 15 mm
Processing / Power
Operating voltage 12 V (DC)
Power consumption Operating – 4.7~5.2 W, Standby – 3.3 W
Connectivity USB-A, USB-B, RS232C
Internal storage 4 GB
Display
Display resolution 4.3-inch, 480 x 272 pixels (color display)
Touchscreen Resistive touch
Glove compatible Compatible with lab gloves
Additional accessories
Thermal Printer for FastGene® Photometer Cat. No. YJ-360T(S) | 1 printer and 1 roll paper | Please contact us for more information.
Thermal roll paper Cat. No. CSM0026 | Pack of 20 rolls | Please contact us for more information.

Product comparison

NanoSpec and NanoView Photometer

The FastGene® photometers NanoView (FG-NP01) and NanopSpec (FG-NP02) are microvolume spectrophotometers for easy and reliable biolmolecule (nucleic acids and proteins) analysis. Both photometers include a microvolume reader and cuvette holder, glove-compatible touchscreen and convenient user interface.

FastGene® NanoSpec: Full spectrum Xenon flash lamp: 190-850 nm (microvolume and cuvette reader)
FastGene® NanoView: Three different wavelength LEDs: 260 nm, 280 nm (microvolume reader), 600 nm (cuvette reader)

Detailed comparison
NanoSpec Photometer - topview
Specification
FastGene® NanoSpec Photometer (link)
(FG-NP01)
FastGene® NanoView Photometer
(FG-NP02)
General specifications
Photometric system Microvolume spectrophotometer Microvolume photometer
Applications Nucleic acid analysis (dsDNA, ssDNA, RNA), colorimetric protein analysis (BCA, Bradford, Lowry), cell density (OD600), kinetic tests, etc. Nucleic acid analysis (dsDNA, ssDNA, RNA), protein analysis whose absorption varies depending on the concentration at 260 nm or 280 nm (BSA, IgG), cell density (OD600)
Footprint (W * D) 216 mm * 290 mm 145 mm * 190 mm
Weight 3.0 kg 1.4 kg
Optical specifications
Detector CMOS linear image sensor (2048 pixels) Silicon photodiode
Light Source Xenon fash lamp LEDs
Wavelength range 190 – 850 nm (full spectrum) 260 nm, 280 nm / 600 nm (cuvette) / 360 nm (baseline)
Measurement time < 8 seconds < 10 seconds
Absorbance accuracy 3% (at 0.97A at 302 nm) 3% (at 1A at 260 nm)
Processing / Power / Software
Software compatibility Windows® 7 and 10 –
CPU Octa Core ARM® CortexTM-A53 Processor –
Storage 32 GB internal storage 8 GB internal storage
Connectivity 4 x USB ports, Ethernet, and RS-232 2 x USB ports, USB-B, and RS-232
Operating systm (OS) Android Firmware
Display
Display 7-inch, 1280 x 800 HD color display 4.3-inch, 480 x 272 color display
Touchscreen Multipoint capacitive touch Resistive touch
Glove compatibility Compatible with lab gloves Compatible with lab gloves
Microvolume performance
Minimum sample volume 1 µL 2 µL
Photometric range 0.02 – 330 A (10 mm equivalent) 0 – 200 Abs
Detection limit (microvolume) 1 ng/μL (dsDNA), 0.8 ng/μL, 0.03 mg/mL (BSA) 2 ng/μL (dsDNA), 60 mg/mL (BSA), 28,8 mg/mL (IgG)
Maximum concentration 16,500 ng/μL (dsDNA), 400 mg/mL (BSA) 2,000 ng/µL (dsDNA), 60 mg/mL (BSA), 28.8 mg/mL (IgG)
Cuvette performance
Detection limit (cuvette) 0.2 ng/μL (dsDNA), 0.006 mg/mL (BSA), 0.003 mg/mL (IgG) –
Photometric range 0 – 2 A 0 – 2 A
Cuvette center height 8,5 mm 15 mm
