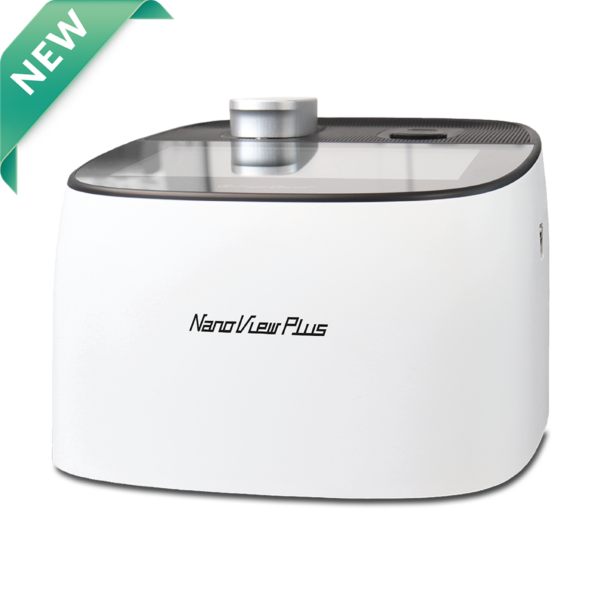

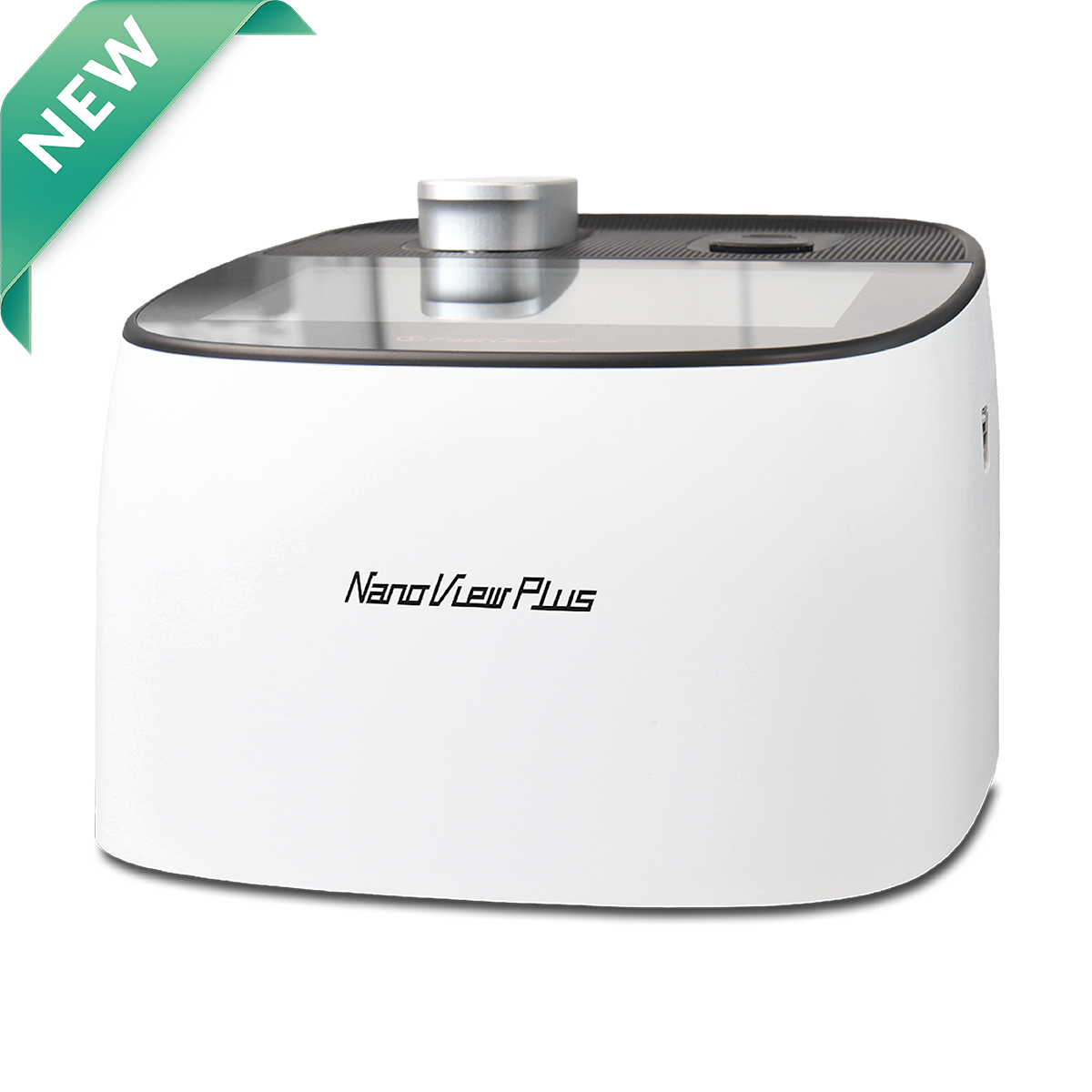

FastGene NanoView Plus Photometer

NEW | High-precision microvolume & cuvette photometer

  • Enhanced precision and stability due to the Xenon flash lamp
  • Fast measurement time: < 1 sec
  • Built for everyday workflows:
    • Fast measurements
    • Clear purity assessment
    • Reliable performance across a wide range of sample concentrations
  • Convenient data management

Product inquiry

Cat. No. FG-NP03 1 piece

Details

FastGene NanoView Plus | FG-NP03 | Microvolume and Cuvette
Reliable reads | Clear decisions

The FastGene® NanoView Plus Photometer is a high-precision microvolume and cuvette photometer for rapid DNA/RNA/protein quantification and an OD600 mode for bacterial density measurements.

  • 230 nm – contaminants
  • 260 nm – nucleic acids
  • 280 nm – proteins
  • 600 nm – OD600 (bacterial density)

The FastGene® NanoView Plus Photometer is built for everyday workflows:

  • Fast measurements
  • Clear purity assessment
  • Reliable performance across a wide range of sample concentrations
FastGene NanoView Plus | FG-NP03 | Interface
Clean software | Simple operation

The FastGene® NanoView Plus interface is clearly structured and intuitive, guiding users with easy-to-read icons and a logical workflow.
With 18 built-in measurement modes, results are displayed in a clean, readable format for quick interpretation.

Precision Xenon flash lamp | Optimal light source

The FastGene® NanoView Plus Photometer features a xenon flash lamp as its light source.

  • Long lifetime, low maintenance
  • Stable light output for reliable results
  • No warm-up time needed
  • Fast measurements
  • Consistent performance over time
FastGene NanoView Plus | Data management | FG-NP03
Convenient data management

The NanoView® Plus allows easy access, organisation and transfer of measurement data via the integrated file management system.

  • Internal storage: 32 GB
  • Data organisation in folders
  • Direct data storage or transfer to an external USB drive possible
  • Data can be saved as an Excel file, a text file, a CSV file or an object file
  • Flexible naming of measured values
  • Deletion or replacement of individually selected measured values possible

Specifications

Display 7″ LCD touch display (glove compatible)
Measurement time < 1 sec
Wavelengths
  • Microvolume: 230 nm / 260 nm / 280 nm
  • Cuvette: 600 nm (OD600)
Wavelenght accuracy ± 1 nm
Sample volume 1–2 µL (microvolume)
Light source
 Xenon flash lamp
Detector CMOS linear image sensor (2048 pixels)
Detection limit
  • dsDNA: 2.0 ng/µL
  • RNA: 1.6 ng/µL
  • BSA: 0.06 mg/mL
  • IgG: 0.03 mg/mL
Connectivity / Storage
  • 4 × USB ports, Ethernet, RS-232
  • 32 GB internal storage
Dimensions 216 nm x 165 nm x 290 nm
Weight 3.0 kg
