FastGene PAGE Protein System

Complete PAGE protein analysis system

  • Complete set for PAGE protein analysis
  • Most flexible use for 1−4 (pre-cast or hand-cast) gels
  • Compatible with different pre-cast gels (Bio-Rad™, ThermoFisher, FastGene®)
  • Hand-cast gel set included (1 mm gels)
  • Easiest gel hand-casting − No leaking!
  • Glass plate holder and tube holder included
  • Additional 0.75 mm / 1.5 mm hand-cast sets available
Price on request


×
Cat. No. PG01 1 set
FastGene PAGE Protein System (PG01) complete

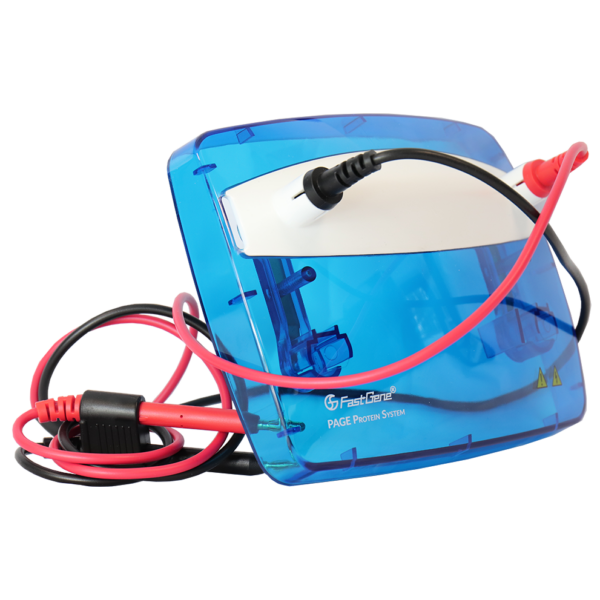

FastGene PAGE Protein System - Chamber Lid with Electrodes

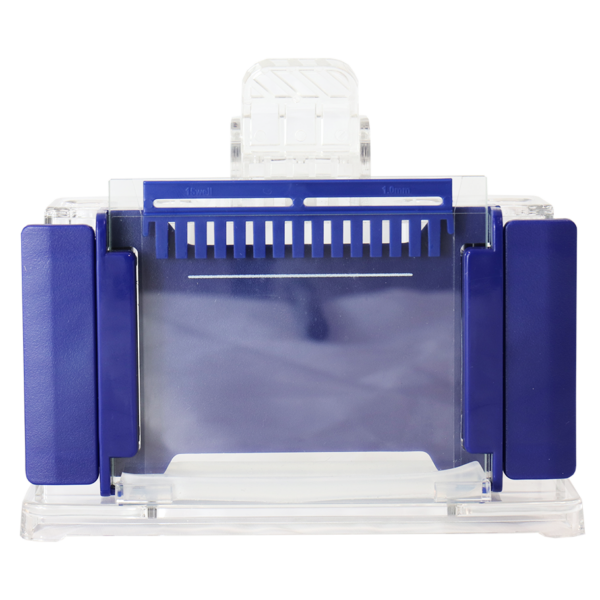

FastGene PAGE Protein System - Gel Casting Base with Gel

Details

Powerful protein analysis via PAGE

PAGE stands for Polyacrylamide Gel Electrophoresis and describes an analytical method in biochemistry for the separation of differently sized protein mixtures in an electric field. During PAGE, proteins migrate through a gel matrix in response to an applied electic field. Smaller proteins travel faster through the gel than larger proteins, leading to a size dependent separation. The most popular form of PAGE is SDS-PAGE. The detergent sodium dodecyl sulfate (SDS) is added for PAGE sample preparation and is also part of the buffer composition. The treatment with the harsh detergent leads to full protein denaturation and unfolding. SDS binds to hydrophobic parts of the unfolded protein and masks the intrinsic charge of the protein with its own negative charge. As a consequence, SDS-protein complexes migration is predominantly dependent on the size of the protein, allowing an estimation of its molecular weight.

Complete set for PAGE protein separation

The FastGene® PAGE Protein System contains all the necessary equipment you need for PAGE protein analysis.
The electrophoresis tank can hold a maximum of 4 gels simultanously for electrophoretic protein separation.

Broad gel compatibility for highest flexibility

The FastGene® PAGE Protein System is compatible with a wide range of pre-cast gels (e.g., FastGene® gels, Bio-Rad TGX™ gels or ThermoFisher mini gels).
It also runs hand-cast gels included in the PAGE Protein System Set (for casting 1 mm thick gels). Also available are FastGene® hand-cast gel sets for gel preparation with 0.75 mm or 1.5 mm gel thickness (product link).

For use of different gels, three different U sealings are included in the FastGene® PAGE Protein System:

  • U sealing strip long, for 10 cm x 10 cm gels (e.g., ThermoFisher mini gels)
  • U sealing strip short, for 10 cm x 8 cm gels (Bio-Rad TGX™ gels)
  • U sealing strip FastGene®, for 10 cm x 8 cm gels (FastGene® gels and hand-cast gels)

Comfortable handling and setup

The FastGene® PAGE Protein System can easily be setup. Plastic dummy cassettes are included for flexible use with 1−4 gels.

FastGene PAGE Protein System - General setup (drawing)

Figure: General setup of the FastGene® PAGE Protein System (drawing).

Easiest gel hand-casting − No leaking!

The FastGene® PAGE Protein System includes a hand-cast set for casting 1 mm thick gels. The set alllows easiest gel hand-casting withour leaking!
Another gel-thickness is needed? No problem, 0.75 mm (PG02) and 1.5 mm (PG03) gel casting sets are separately available.FastGene PAGE Protein System - Gel Casting Base with Gel

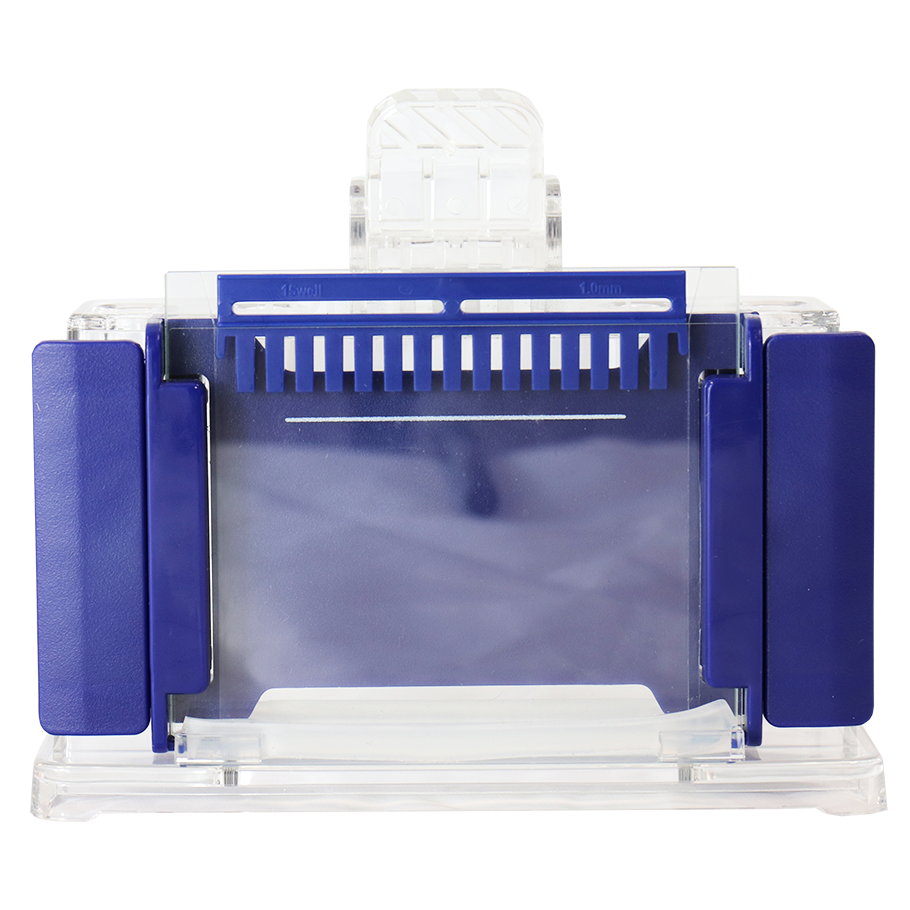

Figure: Gel hand-casting setup − Gel casting base with glass spacer, gel casting clips and sealing gasket.

Video

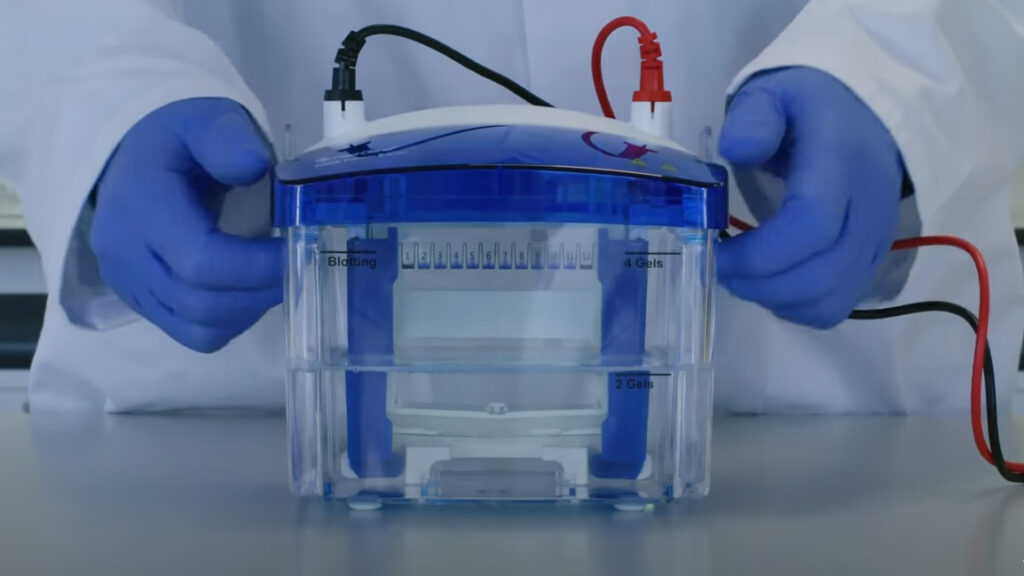

Tutorial: How to setup the FastGene® PAGE Protein System
Thumbnail for the FastGene PAGE Protein System tutorial video

Content and Accessories

The FastGene® PAGE Protein System (PG01) contains all the necessary eqipment for PAGE protein analysis and includes a hand-cast set for convenient gel casting.
Some content of PG01 is also separately available.

Content of FastGene® PAGE Protein System (PG01) Component Image Description Quantity inluded Separately available as
PAGE System
FastGene®  Inner electrophoresis chamber with electrodes FastGene PAGE Protein System - Inner electrophoresis chamber with electrodes (PG11) With 2 side clips for gel holder 1 PG11
FastGene® Inner electrophoresis chamber without electrodes FastGene PAGE Protein System - Inner electrophoresis chamber without electrodes (PG12) With 2 side clips for gel holder 1 PG12
U sealing strip long for 10 x 10 cm gels E.g., ThermoFisher mini gels 4 −
U sealing strip short for Bio-Rad TGX™ gels 10 cm x 8 cm 4 −
U sealing strip FastGene® 10 cm x 8 cm 4 −
Plastic dummy cassette short FastGene PAGE Protein System - Plastic Dummy Cassette Short 10 cm x 8 cm 1 −
FastGene® Plastic dummy cassette long FastGene PAGE Protein System - Plastic Dummy Cassette Long 10 cm x 10 cm 1 PG13
FastGene® Gel/Blot chamber lid with electrodes FastGene PAGE Protein System - Chamber Lid with Electrodes And power cable 1 PG14
FastGene® Gel/Blot chamber tank FastGene PAGE Protein System - Chamber Tank (PSG05) 1 PG05

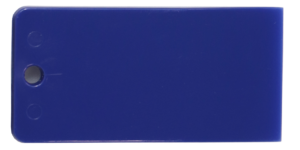

FastGene® Gel shovel FastGene PAGE Protein System - Gel Shovel 5 PG17
Gel hand-casting set
(1 mm gel thickness)
Comb 1 mm 10 wells FastGene PAGE Protein System - Comb 10 mm wells 5 −
Comb 1 mm 15 wells FastGene PAGE Protein System - Comb 15 mm wells 5 −
Glass spacer long 1 mm 5 −
Glass plates short 10 PG04
Gel casting base FastGene PAGE Protein System - Gel Casting Base 4 PG06
Gel casting clip FastGene PAGE Protein System - Gel Casting Clip (closed) 4 PG06
Sealing gaskets FastGene PAGE Protein System - Sealing Gasket 5 PG07
Glass plate holder FastGene PAGE Protein System - Glass Plate Holder Holding 14 glass plates 1 −
Tube holder FastGene PAGE Protein System - Tube Holder For 50 mL, 15 mL, 1.5 mL and PCR tubes 1 −
PAGE System Products at a glance
Cat. No. Product Content Comment
PG01 FastGene® PAGE Protein System Complete protein PAGE set (see table above for detailed content) Standard equipment
PG02 FastGene® Comb Set 075 Gel hand-casting set for 0.75 mm gel thickness:

– 5x Comb 0.75 mm 10 wells
– 5x Comb 0.75 mm 15 wells
– 5x Glass spacer long 0.75 mm
– 10x Glass plate short (PG04)

 Alternative comb set for 0.75 mm gels (not included in PG01)
PG10 FastGene® Comb Set 100 Gel hand-casting set for 1 mm gel thickness:

– 5x Comb 1 mm 10 wells
– 5x Comb 1 mm 15 wells
– 5x Glass spacer long 1 mm
– 10x Glass plate short (PG04)

 included in PG01
PG03 FastGene® Comb Set 150 Gel hand-casting set for 1.5 mm gel thickness:

– 5x Comb 1.5 mm 10 wells
– 5x Comb 1.5 mm 15 wells
– 5x Glass spacer long 1.5 mm
– 10x Glass plate short (PG04)

 Alternative comb set for 1.5 mm gels (not included in PG01)
PG04 FastGene® Glass plates short Short flat glass plates for hand-cast gels (10 glass plates) included in PG01
PG05 FastGene® Gel/Blot chamber tank Large gel electrophoresis buffer tank (1 chamber tank) included in PG01
PG06 FastGene® Gel casting clips
  • Blue gel casting clips (2 pieces)
  • Gel casting bases (2 pieces)
 included in PG01
PG07 FastGene® Sealing gaskets Sealing gaskets for gel casting (5 pieces) included in PG01
PG11  FastGene® Inner electrophoresis chamber with electrodes included in PG01
PG12

FastGene® Inner electrophoresis chamber without electrodes

 included in PG01
PG13

FastGene® Plastic dummy cassette long

 included in PG01
PG14 FastGene® Gel/Blot chamber lid with electrodes included in PG01
PG17 FastGene® Gel shovel 5 shovels included in PG01



Compatibility

Broad gel compatibility for highest flexibility
1) Pre-cast Gels

The FastGene® PAGE Protein System is compatible with a wide range of pre-cast gels, (e.g., Bio-Rad™, ThermoFisher mini gels, FastGene®)

For use of different gels, three different U sealings are included in the FastGene® PAGE Protein System:

  • U sealing strip long, for 10 cm x 10 cm gels (e.g., ThermoFisher mini gels)
  • U sealing strip short, for 10 cm x 8 cm gels (Bio-Rad TGX™ gels)
  • U sealing strip FastGene®, for 10 cm x 8 cm gels (FastGene® gels and hand-cast gels)
2) Hand-cast Gels

The FastGene® PAGE Protein System also runs hand-cast gels included in the PAGE Protein System Set (for casting 1 mm thick gels).
Also available are FastGene® hand-cast gel sets for gel preparation with 0.75 mm or 1.5 mm gel thickness (product link).
